Coatings & Linings

Premium vinyl ester and epoxy resins for heavy duty chemical resistance to prevent leakage and pollution to groundwater.

Coatings for Acids, Alkalis, Hypochlorite, Chlorine, Chlorine Dioxide, Hydrogen Sulphide, Wastewater, Fluorides, Urea, water, 70% sulphuric acid and spills of concentrated sulphuric acid, 50% sodium hydroxide, 10% sodium hypochlorite, dilute nitric acid and many more.

Long term protection with many built-in and optional features

  • Premium vinyl ester and epoxy resins for heavy duty chemical resistance.
  • Barrier technology for ultra-low permeability.
  • Glass reinforced options for higher physical strength.
  • Moisture tolerant options available.
  • Expansion joints treated so coating can span across.
  • Can include non-slip or abrasion resistant additives.

Installed & Warranted by Armatec

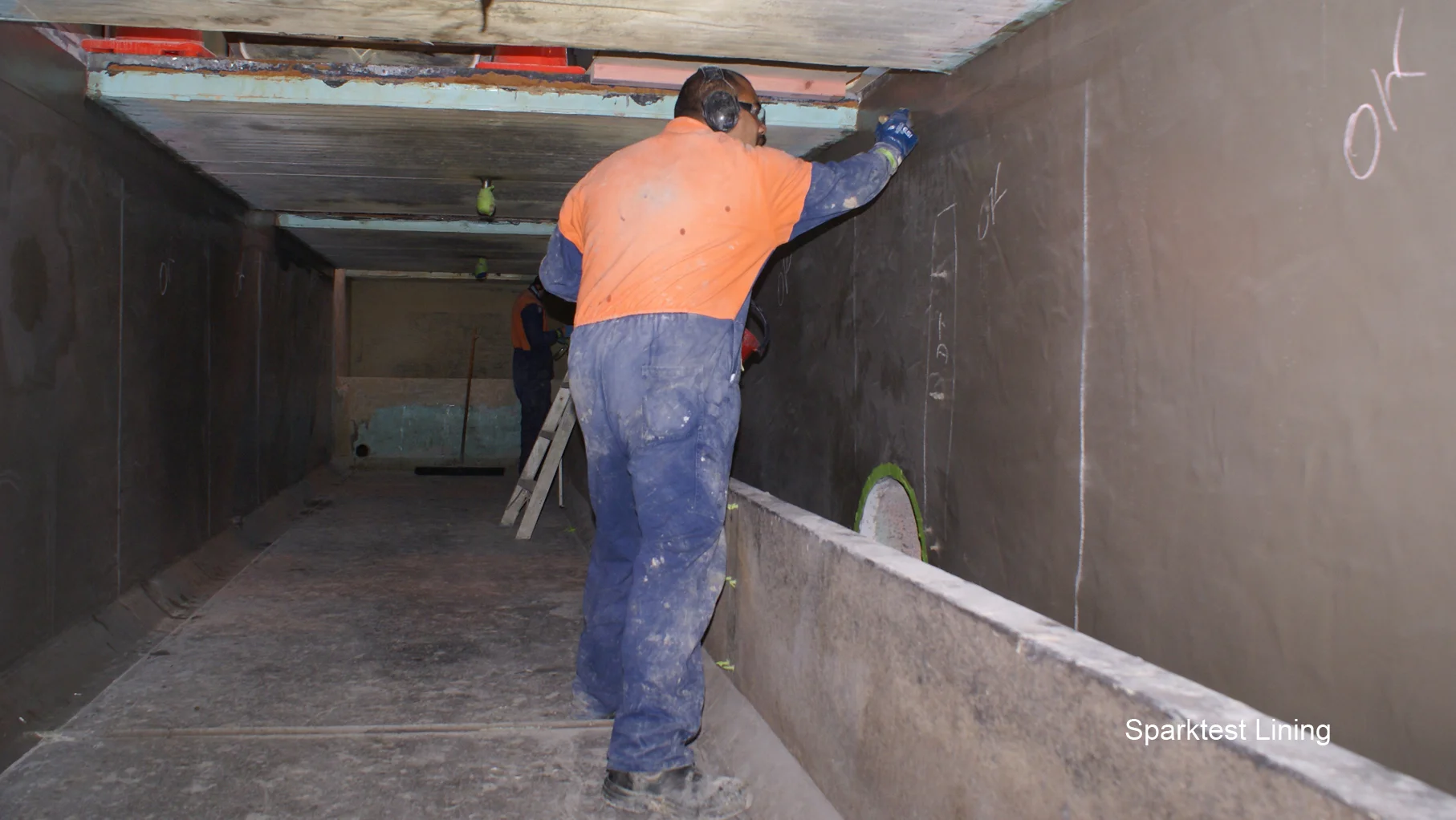

We supply and install - only one contractor to deal with: us.  Testing is rigorous. Finished coatings have high voltage spark tested to ensure zero pinholes. We provide a total 12 month warranty covers materials as well as installation. Extended warranties are available by negotiation. Inspections are available by request.

Key Features

  • Gives long term protection of your steel and concrete assets including tanks, bunds, sumps & floors.
  • Wide-range of use and historical performance in many industries shows versatility and proven effectiveness.
  • Both supplied and installed by Armatec for an expert application and complete warranty.
  • Concrete rehabilitation and reinforcement options available.

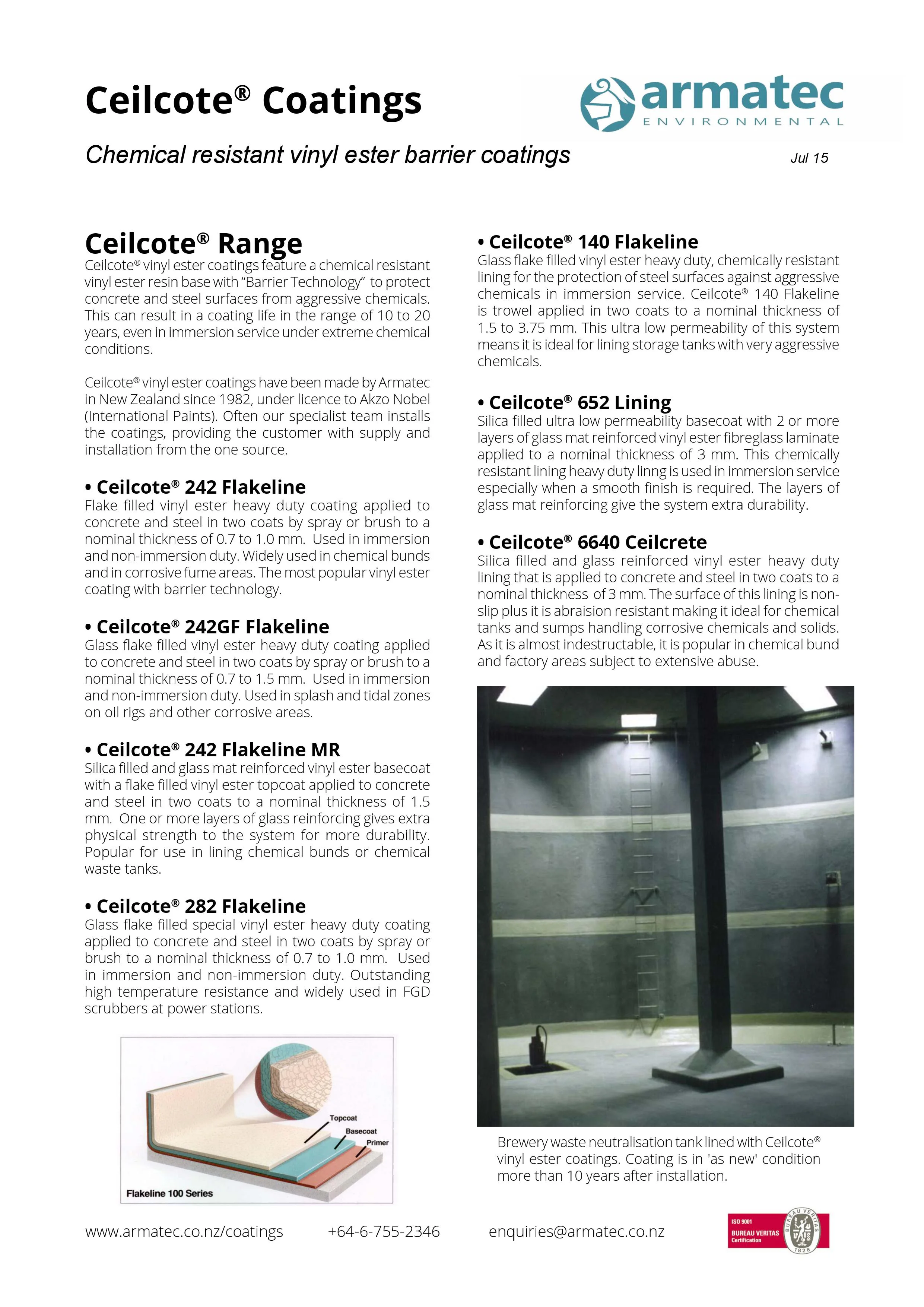

 Download the Ceilcote Vinyl Ester Coatings & Linings Handbook

Download the Ceilcote Vinyl Ester Coatings & Linings Handbook

Ceilcote® Range

Internationally acclaimed range of heavy duty coatings and linings manufactured under license in New Zealand. Examples of range are:
Ceilcote® 242 and 252 Flakeline: Nominal 1mm thick flake filled coatings brush, roller or spray applied and based on chemical resistant resins with outstanding resistance to a wide range of aggressive chemicals.
Ceilcote® 103 Flakeline: Nominal 2mm glass flake reinforced heavy duty lining trowel applied to protect steel tanks from aggressive chemicals in immersion service.
Ceilcote® Ceilcrete & Coroline range of 3mm thick hard wearing silica filled glass cloth reinforced polyester, vinyl ester and epoxy systems for very heavy duty performance. Ideal for sumps, pits, high wear areas ... where the very best is needed.

Armaline® Range

Moisture tolerant and chemical resistant range of heavy duty epoxy coatings using technology from international materials suppliers. Specific coatings have resistance to spills of 98% sulphuric acid and the range of chemicals used in CIP (Clean in Place) systems in the Dairy and Food Industries.
Armaline® 1000 Series: Nominal 1mm coating with good resistance to alkalis and acids.
Armaline® 3000 Series: Nominal 3mm thick glass fibre and flake reinforced coating applied in 1 trowel coat.
Armaline® 5000 Series: Nominal 5mm thick aggregate filled coating applied by trowel.
Gripcoat Non skid epoxy coating system for providing slip resistance in chemical process floors and walkways.

Industries and uses include:

  • Pulp & Paper Industry
  • Dairy Industry Wastewater
  • Wastewater Treatment Plants
  • Fuel Storage Tanks
  • Chemical Plants
  • Chemical Bunds
  • Rehabilitation of existing structures to meet grade.

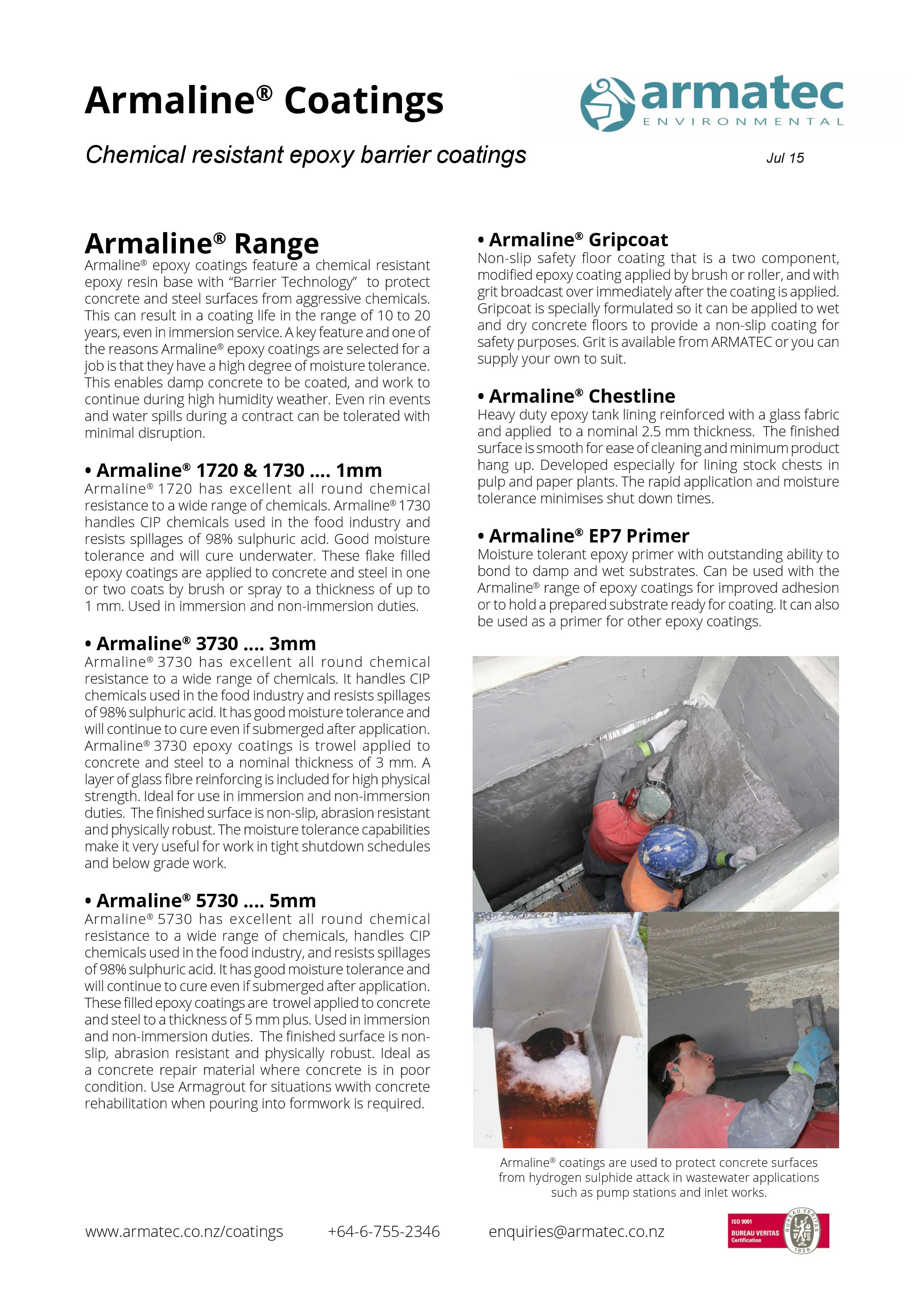

 Download the Armaline Epoxy Coatings Handbook

Download the Armaline Epoxy Coatings Handbook


Ceilcote Flakeline® 200 Series

0.8-1mm flake reinforced, brush or spray. For chemical bunds, waste tanks, light duty immersion, fumes, spillages, medium temperature limits, smooth finish, for concrete and steel substrates, medium security, fast curing spray applied version available.
Ceilcote 252 Flakeline -Bisphenol resin based. The original very successful flake filled coating. Ideal for acids, dilute caustic, etc.
Ceilcote 242 Flakeline - Vinyl ester resin based. Ideal for acids and many chemicals.
Also available in many  different resin bases.



Armaline® 1000 Series

0.5-1mm flake reinforced, brush or spray applied. For chemical bunds, waste tanks, light duty immersion, fumes, spillages, bonds to damp substrates, cures underwater, medium temperature limits, smooth finish, for concrete and steel substrates, medium security.
Armaline® 1720 - standard all duty epoxy flake filled coating. Ideal for dilute acids and other chemicals.
Armaline® 1730 - special epoxy resin based for spillages of 98% sulphuric acid at room temperature.
Also available in many different formulations and resins.



Ceilcote Flakeline® 100 Series

Flakeline-100-series

1.5mm glass flake reinforced, trowel applied. For steel tanks, heavy duty immersion service, highest temperature limits, smooth finish, high security of containment.
Ceilcote 103 Flakeline - bisphenol resin based. The original very successful flakeglass tank lining. Ideal for acids, Cl2 , ClO2, and more.
Ceilcote 164 Flakeline - vinyl ester resin based. Ideal for heavy duty tank lining. Ideal for acids, Cl2, ClO2 and more.
Also available in many different resin bases.



Ceilcote Mat Reinforced Flakeline® Series

2mm flake & glass fibre reinforced. For chemical bunds, waste tanks, medium duty immersion, fumes, spillages, medium temperature limits, smooth finish, for concrete and steel substrates, tolerates some movement in substrate, uses Flakeline 200® topcoat, high security.
Ceilcote MR 252 Flakeline - bisphenol resin based. Ideal for acids, dilute caustic, etc.
Ceilcote MR 242 Flakeline - vinyl ester resin based. Ideal for heavy duty tank lining. Ideal for acids and many chemicals
Also available in many different resin bases.



Armaline® 3000 Series

3mm flake and glass fibre reinforced. For chemical bunds, waste tanks, medium duty immersion, fumes, spillages, bonds to damp substrates, cures underwater, medium temperature limits, smooth finish, for concrete and steel substrates, tolerates some movement in substrate.
Armaline® 3720... standard all duty epoxy flake filled and glass fibre reinforced lining. Ideal for dilute acids and other chemicals.
Armaline® 3730... special epoxy resin based for spillages of 98% sulphuric acid at room temperature.
Also available in many different formulations and resins.



Ceilcote® Lining Series

3mm glass fibre mat reinforced, silica filled basecoat. For chemical tanks, heavy duty immersion, medium temperature limits, smooth finish, for concrete and steel substrates, tolerates some movement in substrate, high security.
Ceilcote® Lining 652... vinyl ester resin based. Ideal for hypochlorite, acids, caustics, Cl2 , ClO2 , etc. ...
Also available in many different resin bases.



Ceilcote Ceilcrete® Series

3mm silica filled, glass reinforced, trowel applied. For chemical bunds, waste tanks, heavy duty immersion, spillages, high temperature limits, non-slip finish, abrasion resistant, for concrete and steel substrates, highest security.
Ceilcote 2500 Ceilcrete ... bisphenol resin based. The original Ceilcrete. Ideal for acids, dilute caustic, etc.
Ceilcote 6400 Ceilcrete ... vinyl ester resin based. Ideal for hypochlorite, acids, dilute caustics, Cl2 , ClO2 , etc.
Ceilcote 695 Ceilcrete ... special resin based. Ideal for nitric and other acids, dilute caustics, Cl2 , ClO2 , etc. ... also available in many different resin bases.



Ceilcote Coroline® Series

3mm epoxy, silica filled, glass reinforced. For chemical bunds, waste tanks, heavy duty immersion, spillages, high temperature limits, non-slip finish, abrasion resistant, for concrete and steel substrates, highest security.
Ceilcote 505 Coroline ... epoxy resin based. The original Coroline®. Ideal for dilute acids, caustic, etc.
Other versions also available.



Armaline® 5000 Series

5mm silica filled flooring and fill material. For chemical bunds, waste tanks, heavy duty immersion, spillages, bonds to damp substrates, cures underwater, medium temperature limits, non-slip finish, for concrete and steel substrates.
Armaline® 5720... standard all duty epoxy flake filled and glass fibre reinforced lining. Ideal for dilute acids and other chemicals.
Armaline® 5730... special epoxy resin based for spillages of 98% sulphuric acid at room temperature. ...
Also available in many different formulations and resins.
